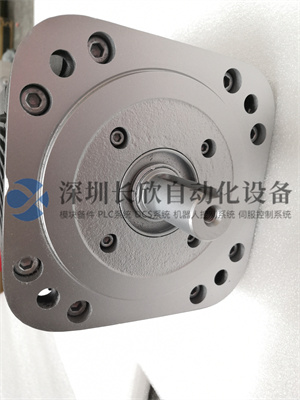

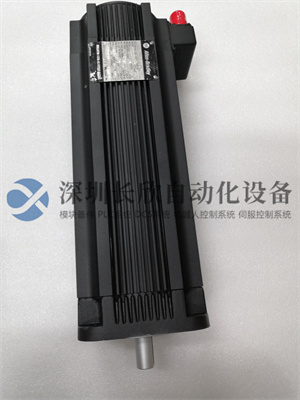

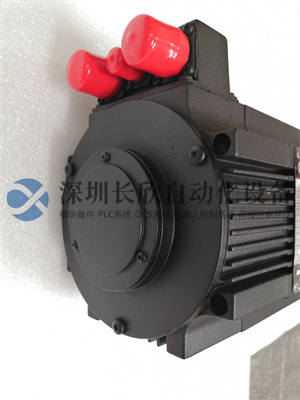

1326AB-B530E-M2K5L A-B

1326AB-B530E-M2K5L A-B是一款三相交流伺服电机,属于Allen-Bradley 1326AB伺服电机系列。该电机专为满足各种工业运动控制系统的严格要求而设计,具有特殊的永磁转子,提供经济高效的伺服响应和性能。

规格
这款伺服电机的额定电压为460伏交流电,可接受的工作电压范围为380伏至460伏。其额定功率为4千瓦,基本转子速度为3000 RPM。在特定工作条件下,该电机还表现出高扭矩特性,如在9.5安培的系统额定电流下具有160磅/英寸的额定扭矩,在峰值失速电流下具有更高的峰值扭矩。

分类:
  • 发货速度快: 我们拥有专业的仓储和物流团队,能够保证您的订单快速发货
  • 品质保证: 我们所有产品均经过严格检验,确保品质优良
  • 售后服务完善: 我们提供完善的售后服务,一年质保

描述

1326AB-B530E-M2K5L A-B

1326AB-B530E-M2K5L A-B是一款三相交流伺服电机,属于Allen-Bradley 1326AB伺服电机系列。该电机专为满足各种工业运动控制系统的严格要求而设计,具有特殊的永磁转子,提供经济高效的伺服响应和性能。

规格
这款伺服电机的额定电压为460伏交流电,可接受的工作电压范围为380伏至460伏。其额定功率为4千瓦,基本转子速度为3000 RPM。在特定工作条件下,该电机还表现出高扭矩特性,如在9.5安培的系统额定电流下具有160磅/英寸的额定扭矩,在峰值失速电流下具有更高的峰值扭矩。



作用特征

  • 高性能:通过其特殊设计的永磁转子和外壳,实现了高效的扭矩输出和优化的电机尺寸。
  • 精确控制:配备高分辨率编码器,可以在多转内提供精确定位反馈,确保精准的运动控制。
  • 稳定可靠:电机设计坚固,具有稳定的性能和较长的使用寿命。

应用领域
1326AB-B530E-M2K5L A-B伺服电机广泛应用于需要高精度和快速响应的工业自动化领域,如电厂、化工厂、钢铁厂等,特别适用于各种需要精确位置控制和速度控制的运动系统。

The 1326AB-B530E-M2K5L A-B is a three-phase AC servo motor belonging to the Allen-Bradley 1326AB servo motor series. Specially designed to meet the stringent requirements of various industrial motion control systems, it features a special permanent magnet rotor that provides economically efficient servo response and performance.

Specifications:
The servo motor has a rated voltage of 460V AC and an acceptable operating voltage range of 380V to 460V. It has a rated power of 4 kW and a basic rotor speed of 3000 RPM. Under specific operating conditions, the motor also exhibits high torque characteristics, with a rated torque of 160 lb-in at a system rated current of 9.5 amps and a higher peak torque at peak stall current.

Functional Characteristics:

  • High Performance: With its specially designed permanent magnet rotor and housing, it achieves efficient torque output and optimized motor size.
  • Precise Control: Equipped with a high-resolution encoder, it provides precise positioning feedback within multiple rotations, ensuring accurate motion control.
  • Stability and Reliability: The motor is designed for durability, offering stable performance and a long service life.

Application Fields:
The 1326AB-B530E-M2K5L A-B servo motor is widely used in industrial automation fields that require high precision and fast response, such as power plants, chemical plants, and steel mills. It is particularly suitable for motion systems that require precise position and speed control.
